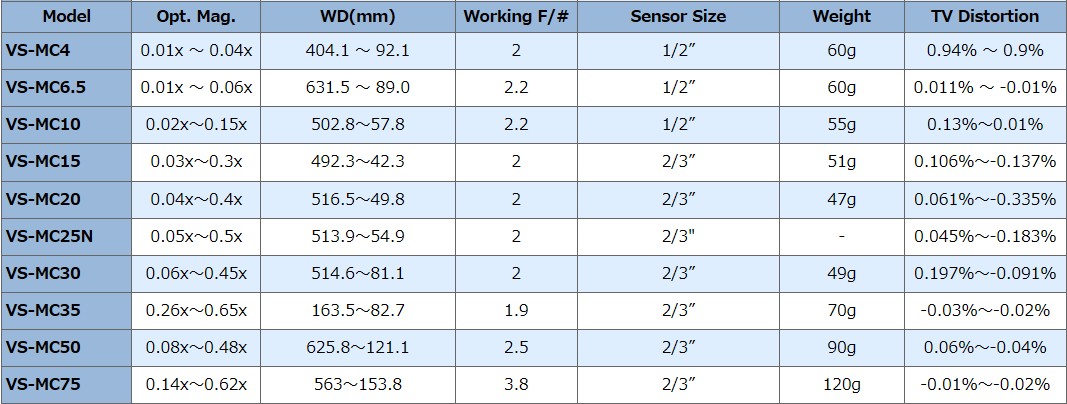

VS-MC Series

Robust design for vibration resistance
For VGA ～3 Megapixel sensors
Compact & Simple for machine use
Distortionless and Reduced shading
Different F/# version available for VS-MC4～75：Open, F5.6 or F8

Improvement of Vibration Resistance

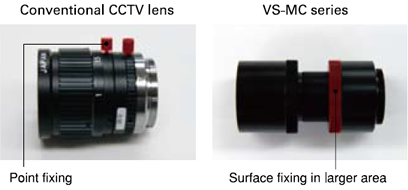

Focus locking system has been changed from point fixing to surface fixing utilizing a ring
and internal mechanical structure designed for high vibration resistance.

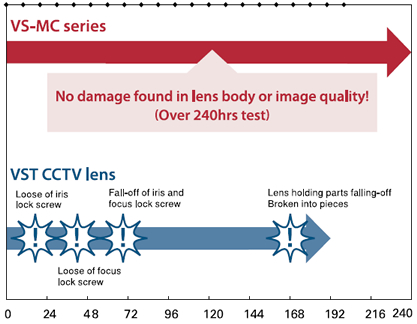

Vibration test result by high speed vibration machine

Condition:Acceleration=57.7m/s2(*1G=9.8m/s2)
From 9.9Hz to 1000Hz (approx.3 minutes interval)



*The test result is caused by the hard test for destructive purpose.

---
